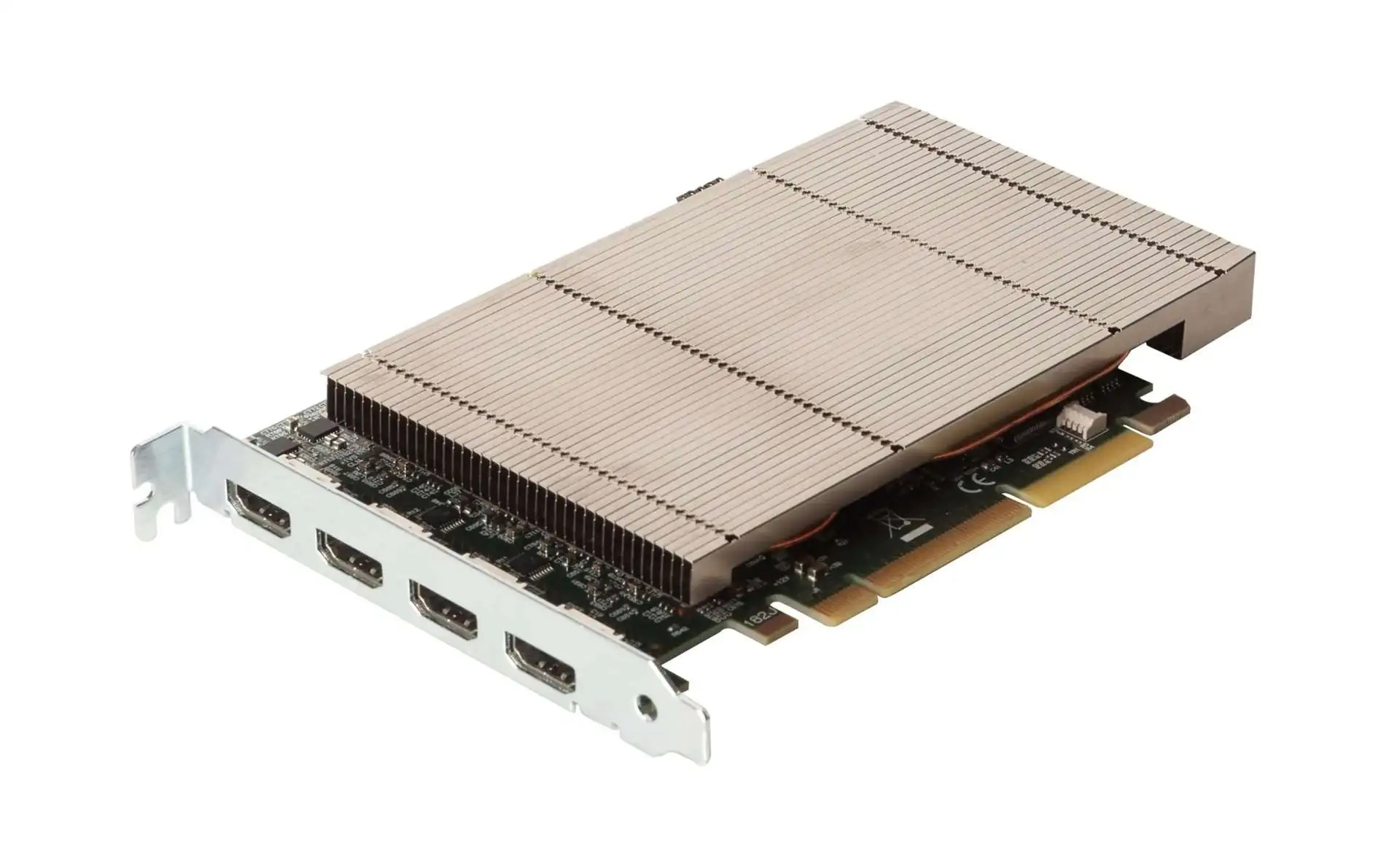

MediaMaster VisionSC-HD4+H (4 x HDMI)

Add multiple HDMI or DVI video input channels to MediaMaster VS2+ or VS4+ media servers running MediaMaster software, from a single card. The MediaMaster Vision SC-HD4 has four channels of HDMI 1.4, two supporting 297MHz (3840×2160 at 60 fps) and two supporting 165 MHz (1920×1080 at 60 fps), all operating independently of each other. This enables four separate video sources to be captured and controlled simultaneously.

Add multiple HDMI or DVI video input channels to MediaMaster VS2+ or VS4+ media servers running MediaMaster software, from a single card. The MediaMaster Vision SC-HD4 has four channels of HDMI 1.4, two supporting 297MHz (3840×2160 at 60 fps) and two supporting 165 MHz (1920×1080 at 60 fps), all operating independently of each other. This enables four separate video sources to be captured and controlled simultaneously.

Specifications

Hardware Specifications:

  • Motherboard Connection Type: PCIe x8
  • Input Connectors: 4 x BNC/SDI

Software Specifications:

  • Maximum Capture Resolution: 2.97 Gbps capture bandwidth per channel. Provide => 4 * 1920x1080p @ 60 Hz per input
  • Update Rate: User defined. Captured frame rate will match the source providing max data rate (6 GB/s per channel) is not exceeded. Multi-buffered to eliminate tearing artefacts.
  • SMPTE Standards: ST-259, ST-272, ST-274, ST-291, ST-292, ST-293, ST-296, ST-299, ST-352, ST-424, ST-425, ST-2048
  • Video Modes: 480i, 576i, 720p, 1080i, 1080p, 1080psF, 2048 x 1080p, 2048 x 1080psF
  • Supported Frame Rates:  23-98Hz, 24Hz, 25Hz, 29-97Hz, 30Hz, 50Hz, 59-94Hz &60Hz
  • Sample Formats: RGB: 4:4:4 (+A)
    YUV: 4:2:2 (+A), 4:4:4 (+A)
  • Frame Buffer Memory: 768 MB

Included Accessories:

  • VS4+ Rear Panel Adapter Plate: 1

Boxed Weights and Dimensions:

  • Width: 280mm (4.09 inches)
  • Depth: 170mm (4.09 inches)
  • Height: 75mm (4.09 inches)
  • Weight: 0.35 KG (0.77 lb)
