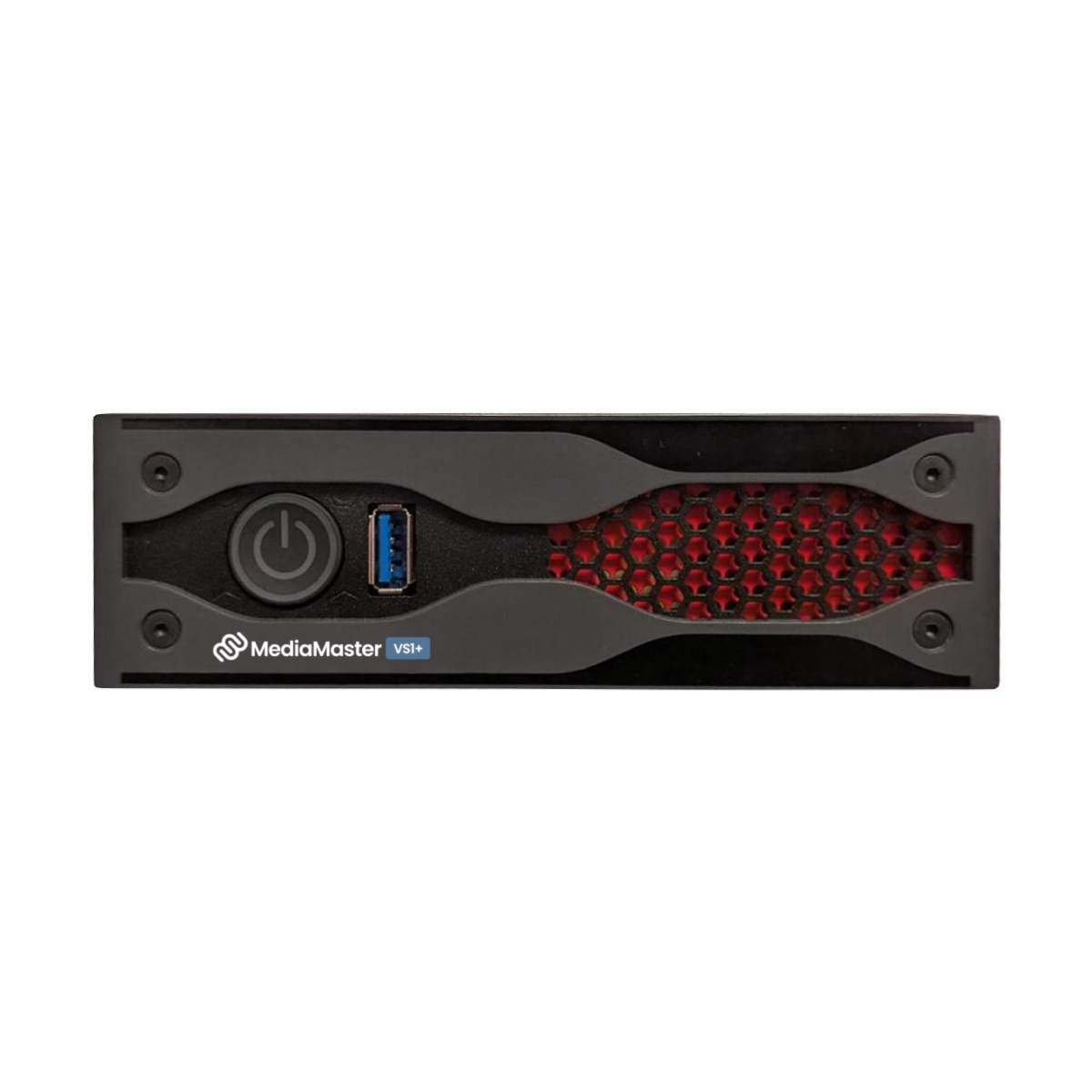

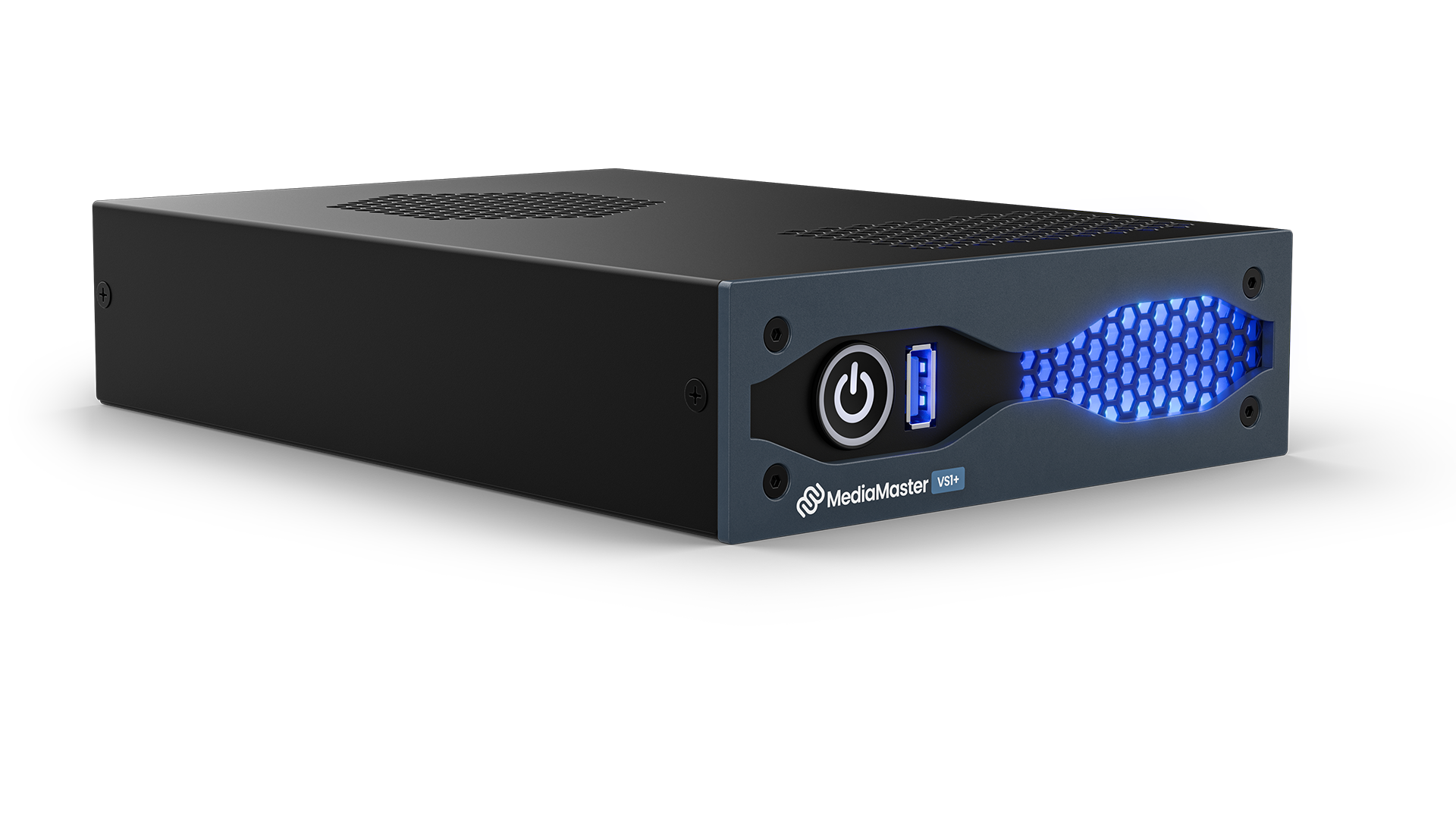

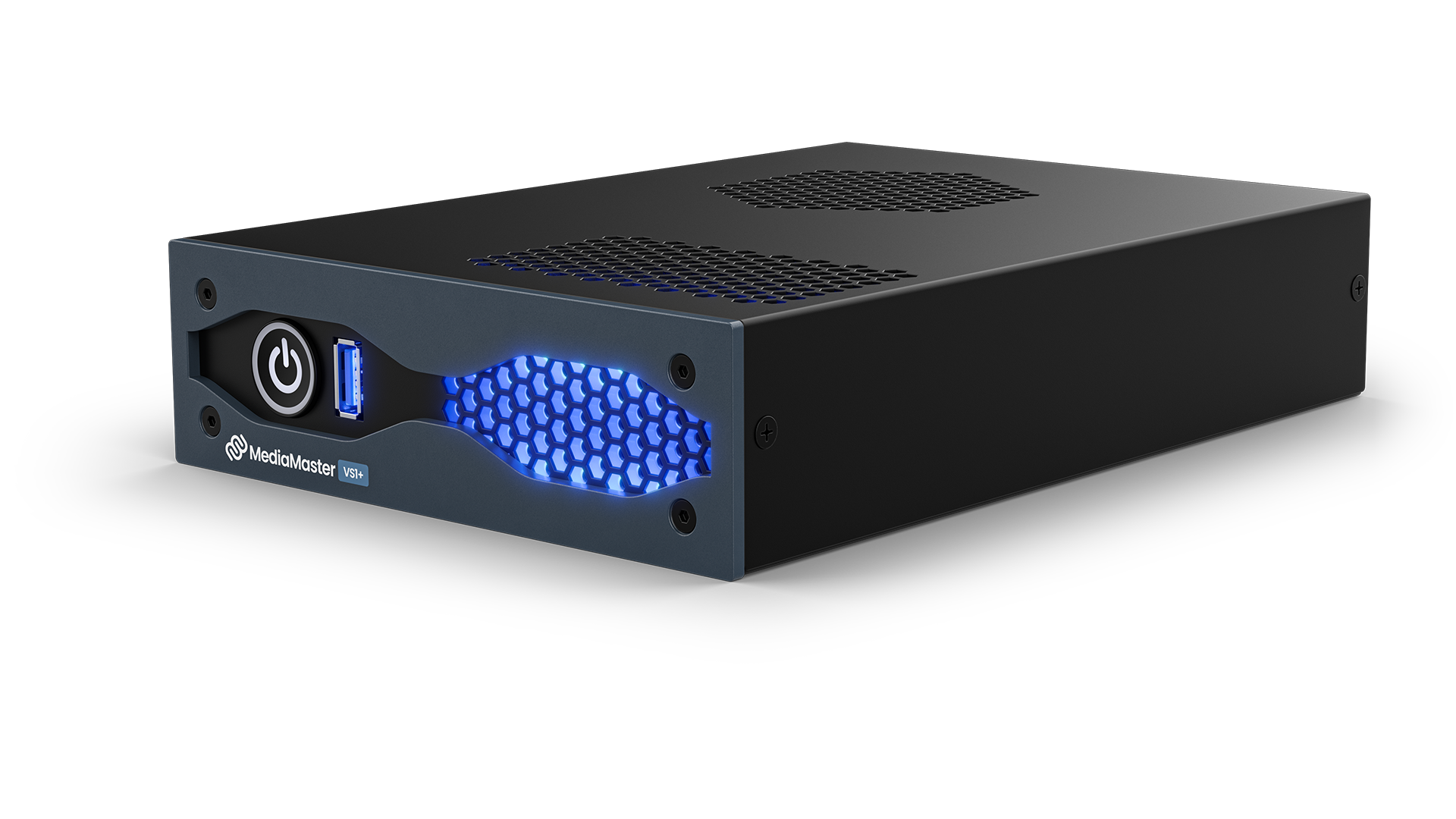

MediaMaster VS1+

VS1+ delivers stunning 4K playback in a compact, lightweight, and robust package—perfect for touring professionals who need power, flexibility, and reliability on the road.

Overview:

  • 4K Video Output

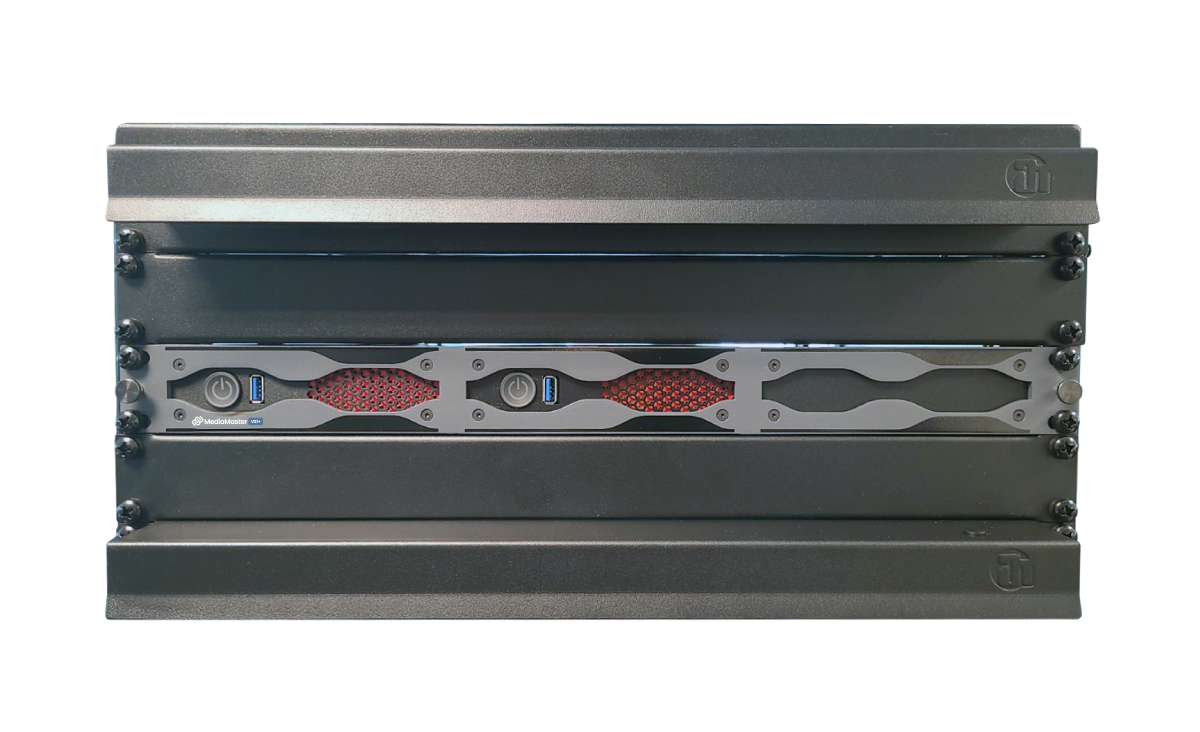

  • Mount 3 Units in a 1U Rack Footprint
  • MediaMaster Pro Software
  • Includes LED Mapper & Video Mapper
  • NDI Support

VS1+ delivers stunning 4K video playback in a highly flexible, intuitive control package.

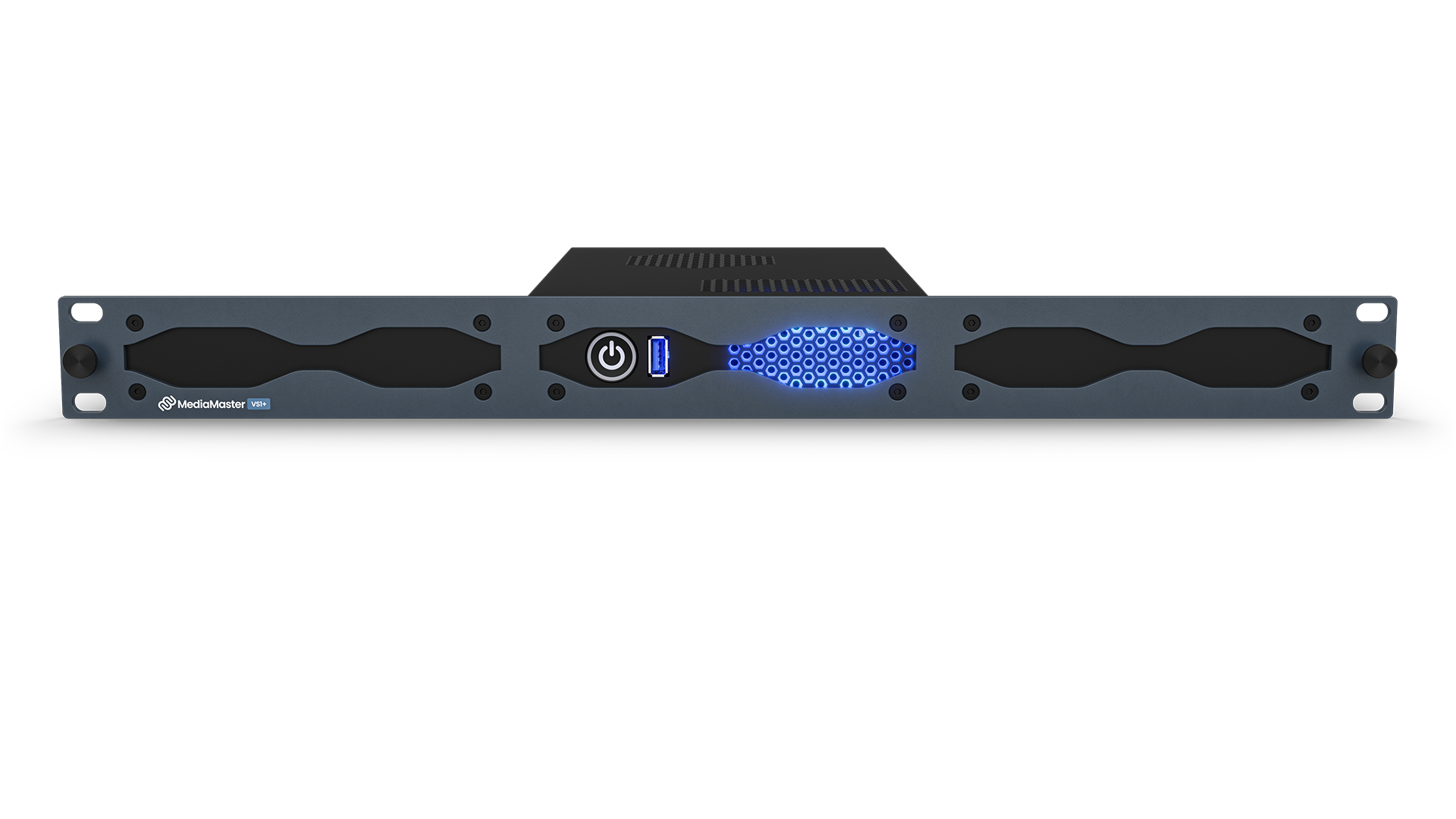

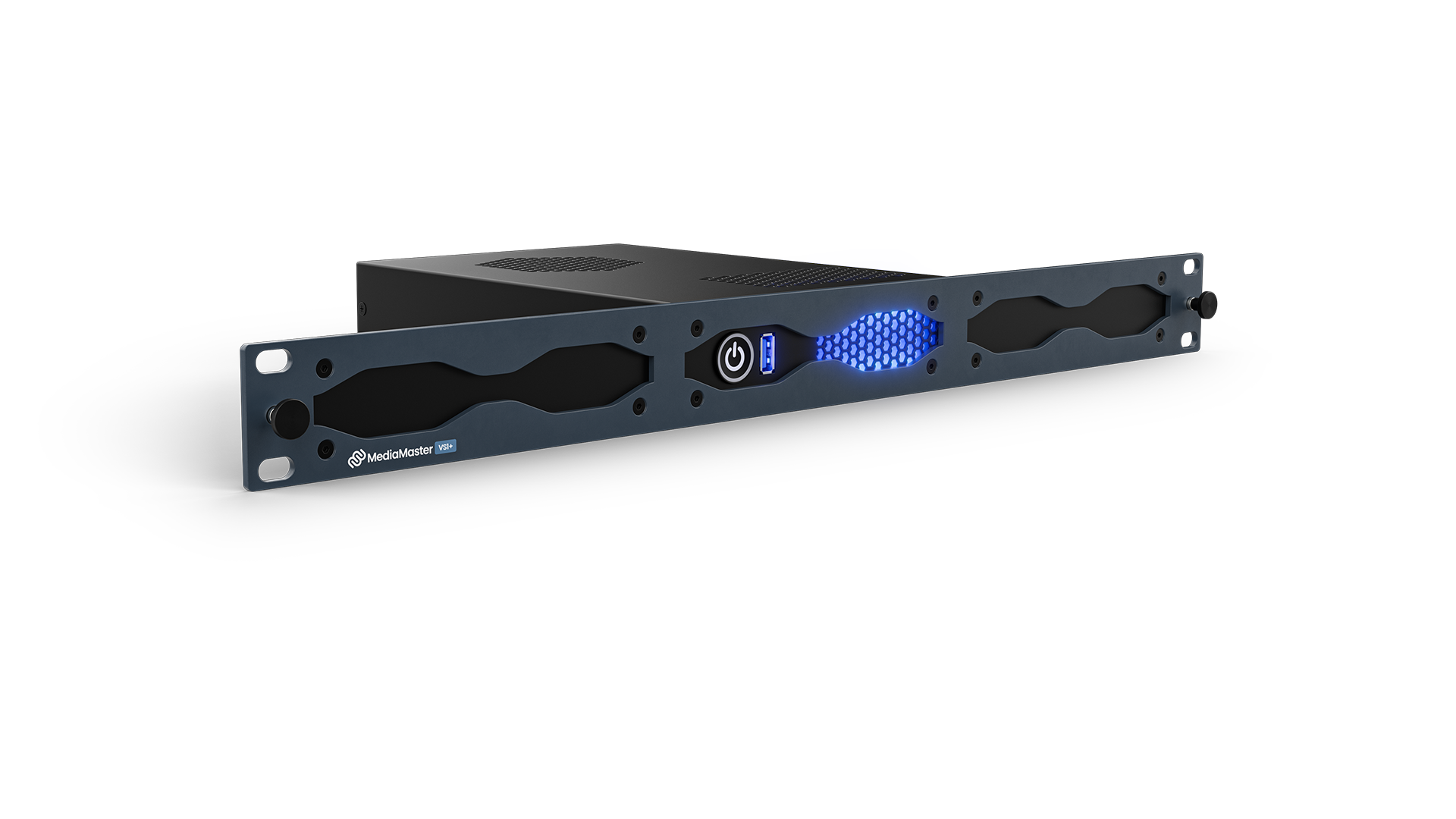

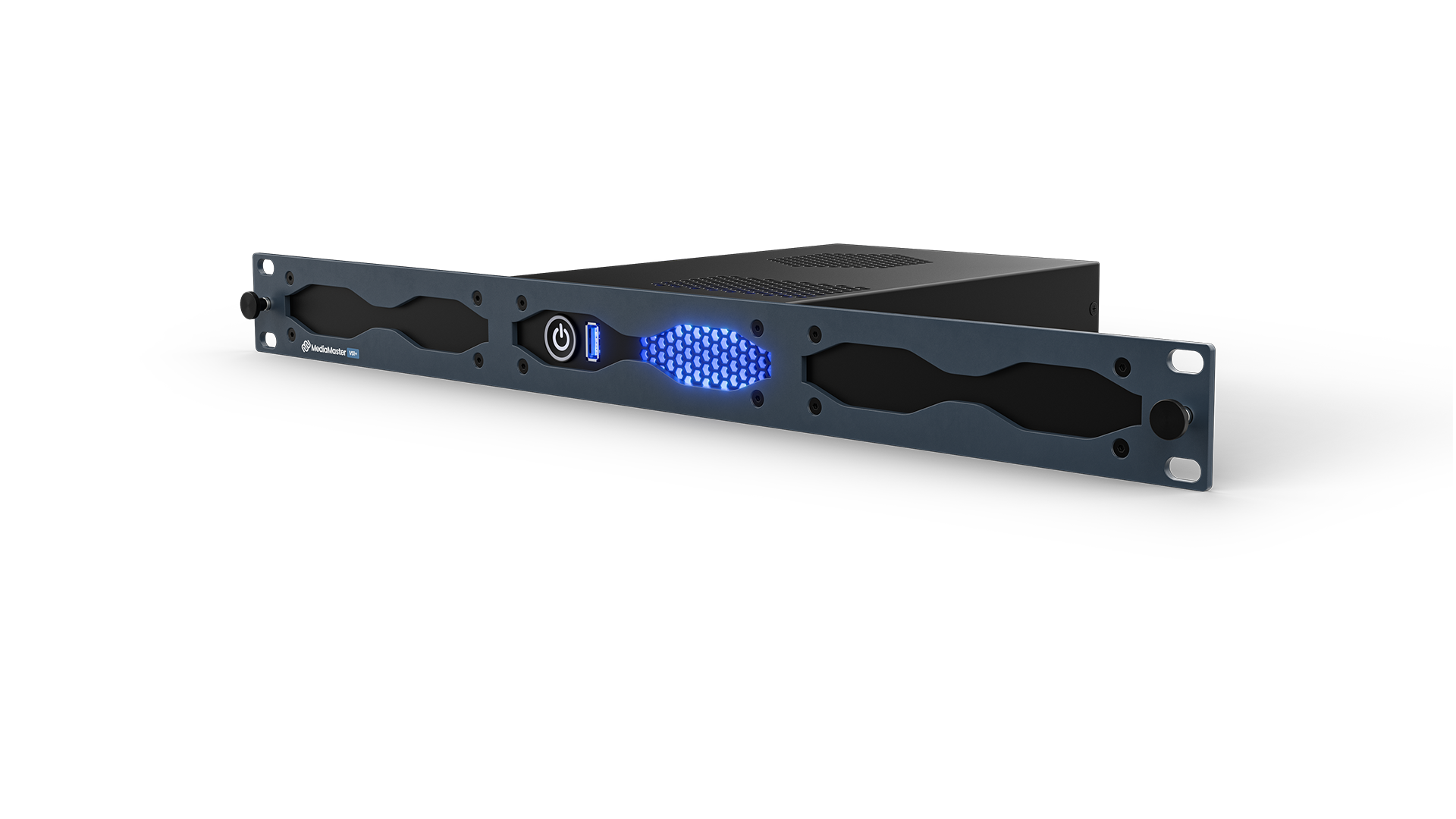

With compact dimensions of just 143.2 x 195 x 43 mm, three units fit neatly into a 1U rack footprint—ideal for maximizing space in professional setups. Weighing only 1.28 kg, the VS1+ combines lightweight portability with robust, precision engineering, making it the perfect choice for touring lighting operators, VJs, and DJs who demand reliability and performance on the road.

Specifications

Hardware Specifications:

  • Processor: Intel i7, 2.8 GHz
  • Threads (Cores): 8 (4)
  • RAM: 16GB (2x 8GB Crucial)
  • RAM Type: DDR4 3200 MHz SODIMM
  • Graphics Card: Intel Integrated Graphics
  • Power Input: powerCON TRUE1 110 to 240 VAC
  • Max Power Consumption (mains): TBC
  • System Drive: 500GB SSD
  • Storage Drive: Uses System Drive
  • System Restore Drive: No
  • Interface Output: 1 x HDMI 2K
  • Media Output: 1 x HDMI 4K
  • Ethernet Output: 1 x 2,5 GB/s

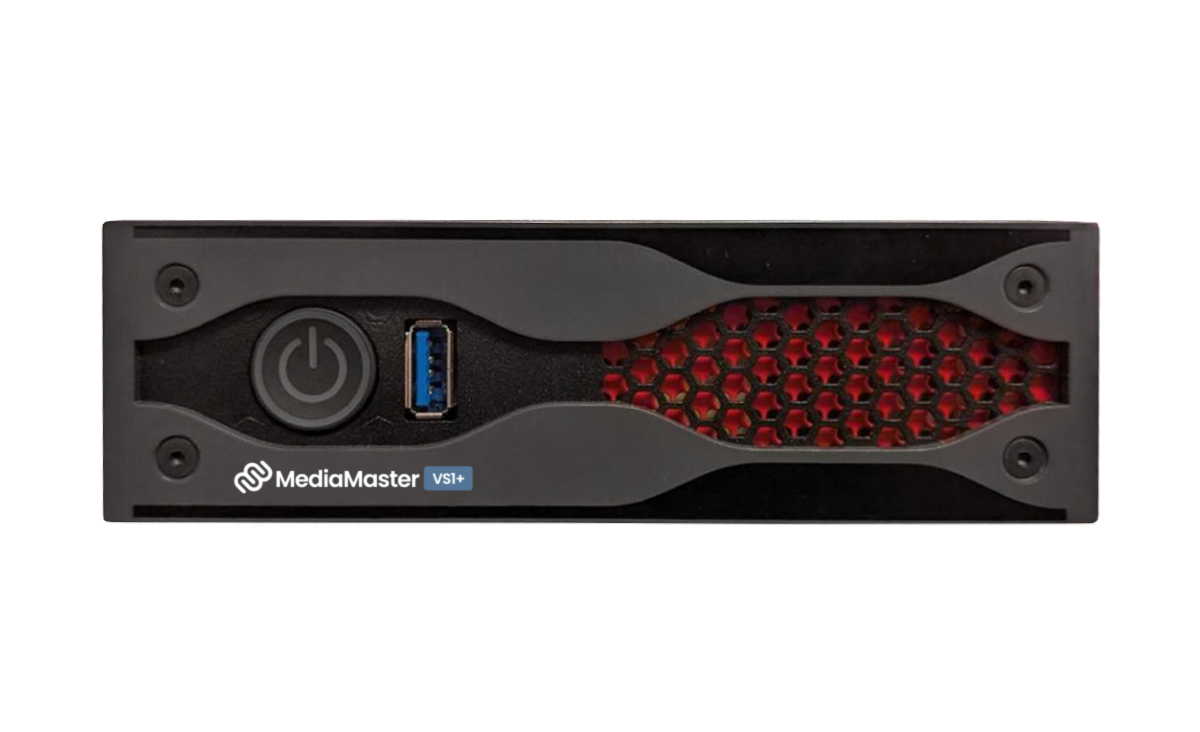

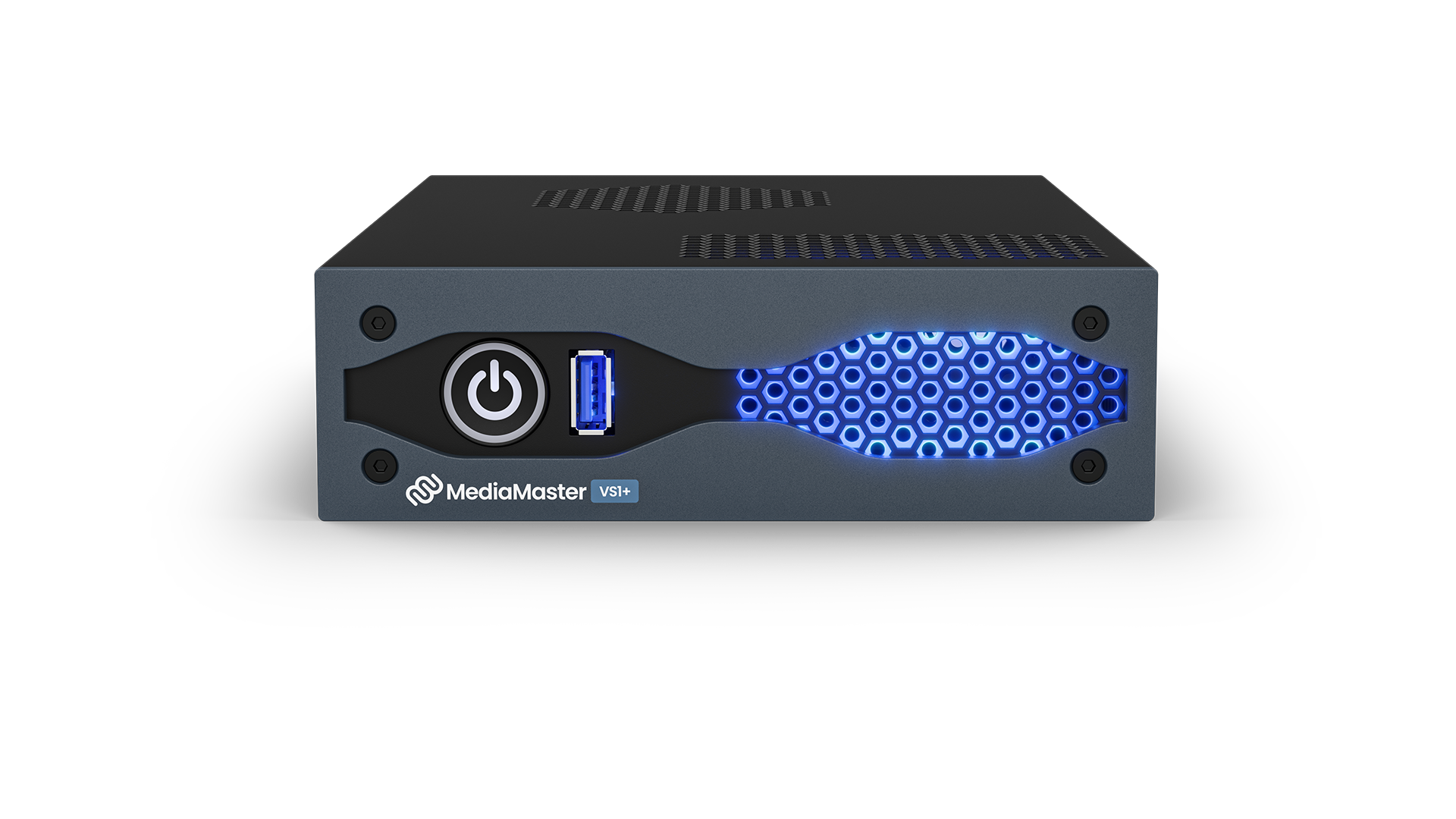

  • Front USBs: 1 – USB 3.0 A Type

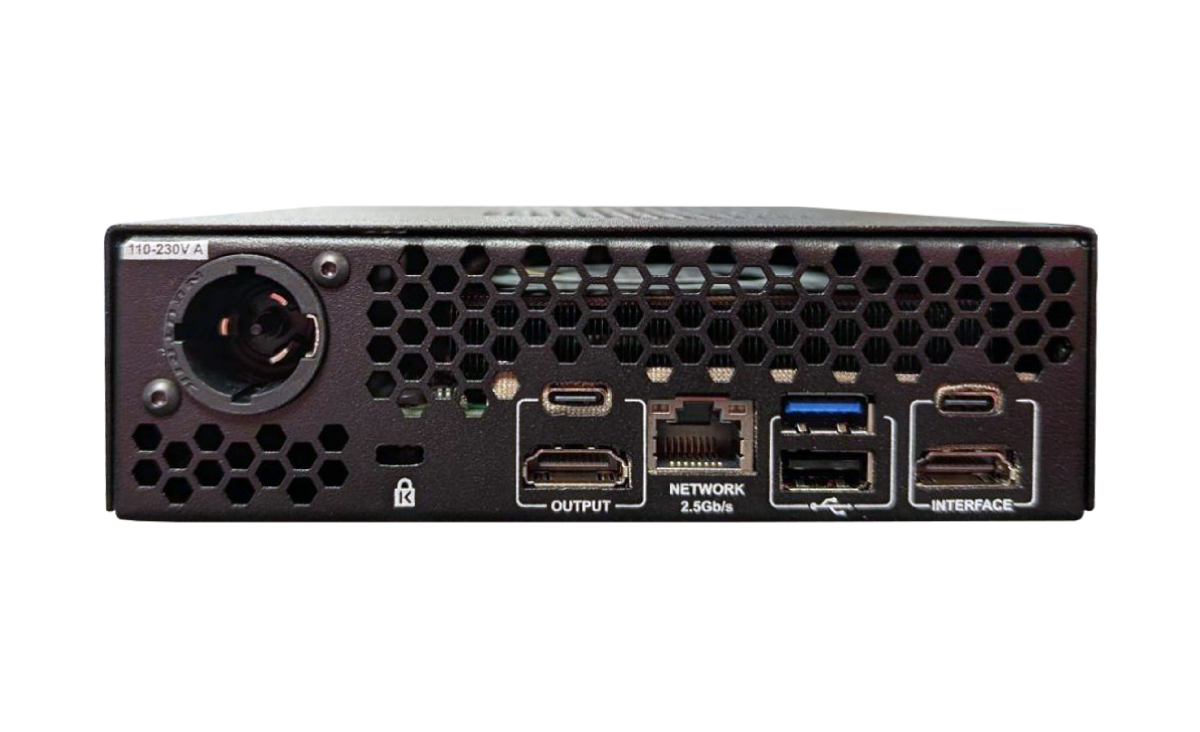

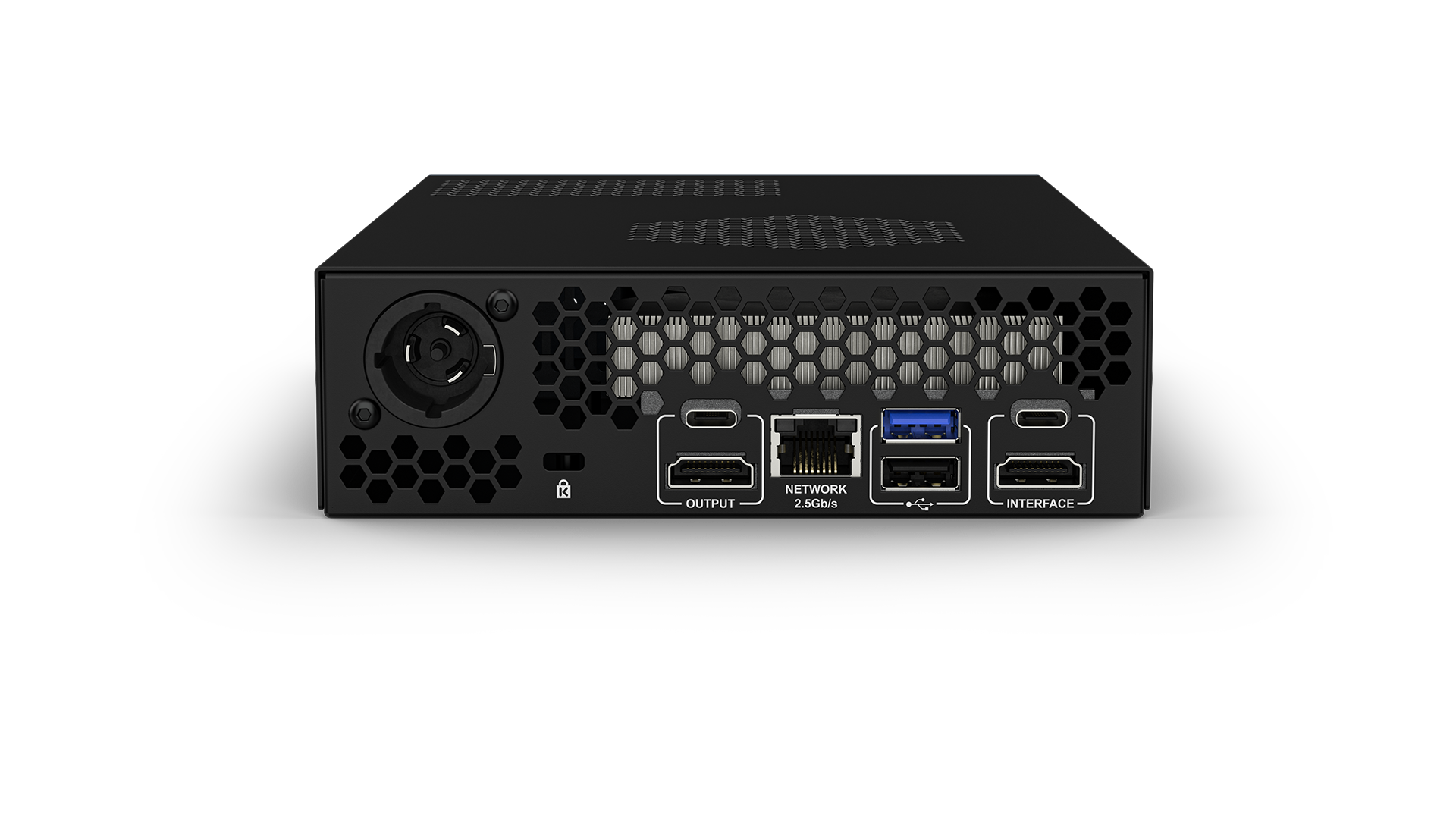

  • Rear USBs: 2 x USB 3.0 A Type , 2 x USB-C

Software Specifications:

  • Operating System: Windows 11 Pro
  • MediaMaster Software: Pro
  • Playback Layers: 48
  • Surfaces: 1
  • Outputs: 1
  • Presets: 4096
  • LED Mapper: Yes
  • King Net Mapper: Yes
  • Video Mapper: Yes
  • Soft Edge / Geometric Correction: Yes
  • NDI®5 : Yes
  • CITP/MSEX: Yes
  • GDTF Personality Export: Yes
  • Factory System Restore: Yes

Control:

  • Art-Net: Yes
  • sACN: Yes
  • Stand Alone Keyboard Control: Yes
  • DMX Control: Optional MagicDMX
  • Front Panel Control: No

Boxed Weights and Dimensions:

  • Width: 515mm (20.28 inches)
  • Depth: 235mm (9.25 inches)
  • Height: 100mm (3.93 inches)
  • Weight: 1.66 kg (3.66 lb)

Unit Weights and Dimensions:

  • Width: 143mm (5.63 inches)
  • Depth: 195mm (7.68 inches)
  • Height: 43mm (1.69 inches)
  • Weight: 1.28 kg (2.82 lb)

MediaMaster Software

The legendary Arkaos MediaMaster is now ChamSys MediaMaster 25 — a major upgrade to MediaMaster 6, rebuilt for today’s production demands.
